    Bell dredge computer

    The Bell Dredge Computer is a comprehensive, highly ruggedized dredging system. It features all components inside a single and solid housing. Bell Dredge Computer is powered by proven Dredge software and a Trimble GNSS RTK receiver.
    An internal UHF transceiver and a GSM/GPRS/UMTS modem provide access to RTK corrections and enable remote customer support via the internet.

    Pantalla de a bordo que muestra el software de navegación y profundidad « dredging », con datos batimétricos codificados por colores, instalada en el interior de la cabina del operador de la draga.
    Pantalla de a bordo que muestra el software de navegación y profundidad « dredging », con datos batimétricos codificados por colores, instalada en el interior de la cabina del operador de la draga.
    Orange control unit by Bell Dredging Equipment featuring multiple connector ports, switches, and a display screen on its front panel.

    TYPICAL APPLICATIONS

    • Cutter suction dredgers
    • Grab dredgers
    • (Amphibious) Excavators

    We can modify the design to every customer’s needs. Please contact us for more information!

    HARDWARE

    • Internal industrial Intel PC with windows 7 Pro, SSD
    • Internal Trimble RTK GPS/GLONASS 50 Hz with Heading
    • Internal GSM/GPRS/UMTS/LTE Modem + Marine antenna
    • AG Neovo X15 LCD + LCD Arm
    • Mini keyboard/Trackball combo
    Screenshot of a dredging monitoring system display showing multiple views of a crane/dredge boom position, a color-coded bathymetric depth map with survey data overlay, and a data panel with navigation coordinates, tide levels, crane heading, and positioning parameters.
    AG Neovo monitor displaying dredging navigation software with a color-coded depth map, GPS coordinates, and cross-sectional profile views, mounted on a metal railing at a dredging site.

    ESPECIFICACIONES

    • Industrial Intel Computer
    • Internal (G)PS/GLONASS (RTK) receiver
    • Industrial GSM/GPRS/UMTS Modem
    • CAN Sensor Interface
    • IP67 9-30 VDC Power Input
    • IP67 USB & Serial Connections
    • IP67 Ethernet Connection
    • Optional Internal UHF Transceiver
    • Optional Internal GNSS Compass
    • Wide range of accessories and sensors
    • Dimensions: 40 x 23 x 11 cm

    Customize the Bell Booster Stations to your specific needs

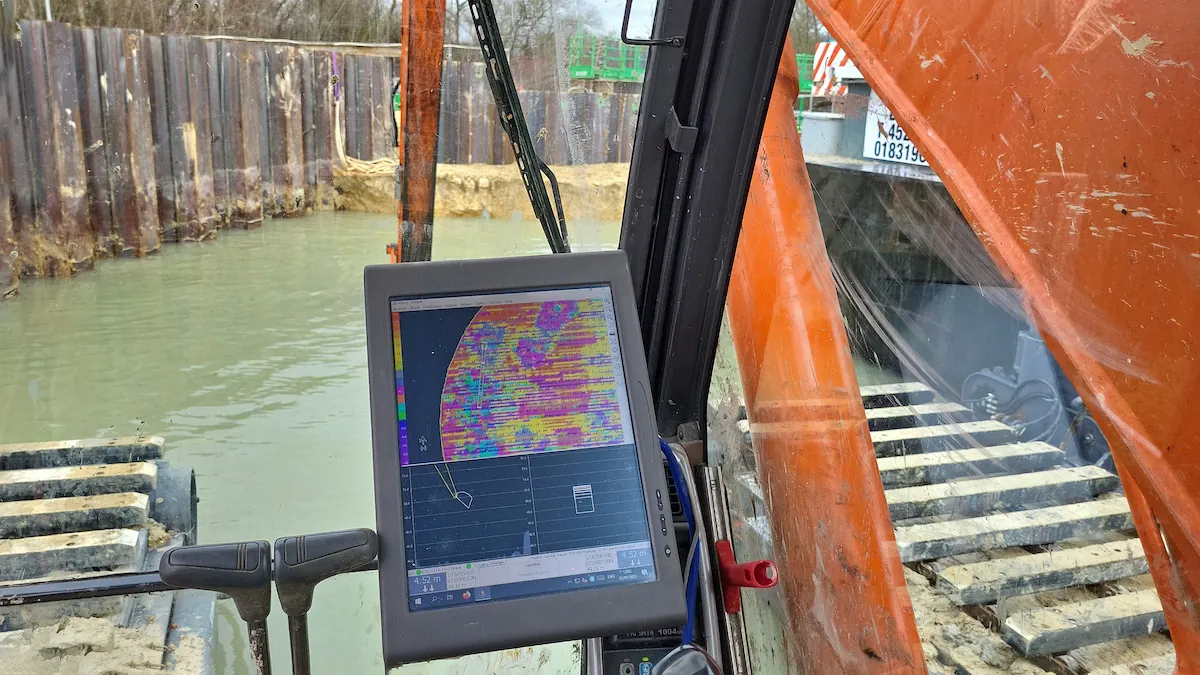

    Excavator cab view with a color depth-scanning monitor displaying underwater terrain data, overlooking a water-filled dredging site enclosed by sheet piling walls.
    Folleto del producto «Bell Dredging Equipment», en el que se muestra una portada cerrada con una bomba de dragado montada en una excavadora, junto a una doble página abierta en la que se presentan diversos cabezales dredging , entre ellos un Sand Production Head y un Flat Barge Head , con fotografías y especificaciones de los productos.
    Folleto (PDF)
    Folleto – Equipos « Dredging »
    Nuestro nuevo folleto de 2026, con información sobre las bombas Bell Dredging , los cabezales y todas las opciones disponibles.
