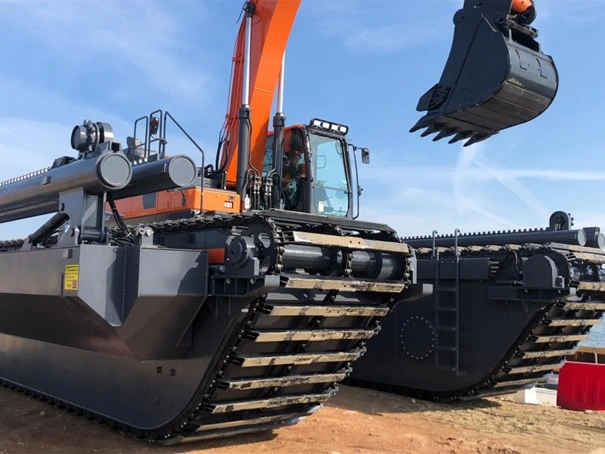

    40-45 ton class Amphibious Excavator

    The 40-45 ton class Amphibious Excavator is part of Bell Dredging Pumps equipment. Main business is designing and manufacturing amphibious undercarriages for hydraulic excavators. We are also specialized in manufacturing dredging pumps and cutter suction dredgers.

    40-45 TON CLASS AMPHIBIOUS EXCAVATORS ARE USED FOR:

    • Landscaping
    • Dredging projects
    • Erosion control and prevention
    • Deepening of waterway and river delta
    • Cleaning and maintenance of rivers, lakes, shorelines etc…

    Product specs

    Units (imperial)
    Units (metrics)
    Hydraulic system pressure
    5076 psi
    350 bar
    Power motor
    115 hp
    86 kW
    Float capacity
    46 yd3
    35 m3
    Total weight
    63934 lbs
    29000 kg
    Max speed
    1.4 mph
    2.3 km/h
    Max gradient
    30 deg
    30 deg
    Ground pressure
    0.00023 psi
    0.16 kg/cm2
    Side pontoon option
    Yes
    Yes
    Spud leg option
    Yes
    Yes
    Adjustable width
    Yes
    Yes
